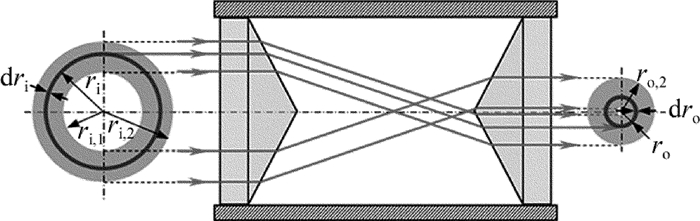

轴锥镜是一种很重要的光学器件,在各种需要特殊光束的领域具有重要的应用[12-20]。双轴锥镜环形光束整形装置由两个轴锥镜组成,如图 1所示。两个轴锥镜具有相同的锥顶角,其锥顶相对且同轴装配。由图 1可以看出,垂直于轴锥镜底面入射的光线分别经两个轴锥镜折射后,光线的出射方向与入射方向一致, 即该整形装置不改变光线的传输方向,而是将入射光线沿径向平移,使光束在保持传播方向不改变的前提下靠近光轴,将环形空心激光束转变为近似实心的激光束。对于沿光轴方向入射的平行平面波,该装置具有等光程特性,即输出光束仍旧为平面波。两轴锥镜之间的距离可以调节用以改变输出光束的直径。
对于沿光轴方向入射的平行平面波,设入射环形光束的内环半径为ri, 1,外环半径为ri, 2,经双轴锥镜整形后出射环形光束的内环半径为ro, 1,外环半径为ro, 2。在入射光束中取一半径为ri、厚度为dri的环形微元光束,对应的出射环形微元光束半径为ro,厚度为dro。由图 1的几何关系可以得到:
$ {r_{\rm{i}}} + {r_{\rm{o}}} = {r_{{\rm{i, }}1}} + {r_{{\rm{o, 2}}}} = {r_{{\rm{i, 2}}}} + {r_{{\rm{o, 1}}}} $
(1) $ {\rm{d}}{r_{\rm{o}}} = {\rm{d}}{r_{\rm{i}}} $
(2) 设入射光束为均匀分布的轴对称环形光束,其振幅为E0,则半径ri对应的入射面光场相对分布为Ei(ri):
$ {E_{\rm{i}}}({r_{\rm{i}}}) = \left\{ \begin{array}{l} {E_{\rm{0}}}, ({r_{{\rm{i, 1}}}} < {r_{\rm{i}}} < {r_{{\rm{i, 2}}}})\\ 0, \left( {{\rm{other}}} \right) \end{array} \right. $
(3) 设出射光场分布为Eo(ro),忽略双轴锥镜对光的衰减,根据能量守恒原则,有:
$ {\left| {{E_{\rm{o}}}({r_{\rm{o}}})} \right|^2}{r_{\rm{o}}}{\rm{d}}{r_{\rm{o}}} = {\left| {{E_{\rm{i}}}({r_{\rm{i}}})} \right|^2}{r_{\rm{i}}}{\rm{d}}{r_{\rm{i}}} $
(4) 根据(1)式~(4)式可得:
$ \left| {{E_{\rm{o}}}({r_{\rm{o}}}){\rm{ }}} \right| = \left\{ \begin{array}{l} {E_0}\sqrt {\frac{{{\mathit{r}_{{\rm{o, 1}}}} + {\mathit{r}_{{\rm{i, 2}}}}}}{{{r_{\rm{o}}}}} - 1} , ({r_{{\rm{o}}, 1}} < {r_{\rm{o}}} < {r_{{\rm{o}}, 2}})\\ 0, \left( {{\rm{other}}} \right) \end{array} \right. $

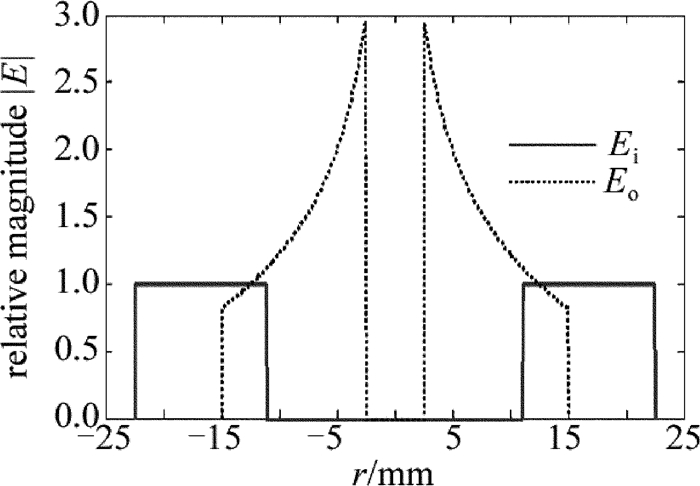

(5) 图 2描述了平顶环形光束经双轴锥镜装置变换前后的光场分布。由图中可以看出,在ro, 2 < ri, 2时,双轴锥镜整形装置通过对光束的径向平移变换,在不改变光束传输方向和发散角的前提下,实现了光束能量向光轴的集中分布。
实际的非稳腔激光束并非平面波,但在靠近束腰处,瑞利长度范围内,其波面可近似为平面。双轴锥镜整形装置的长度远小于激光器出射光的瑞利长度,因此,在理论分析时,可以将其光束作为平面波处理。
-
为了验证双轴锥镜对环形激光束的整形效果,利用自行加工装配的双轴锥镜光束整形装置进行了实验。两个轴锥镜由K9玻璃加工而成,口径60mm,锥角120°,表面镀1.06μm增透膜。两个轴锥镜锥尖相对装配在一个铝合金镜筒中保持同轴,其间距可根据光束整形需求进行调节。系统有效通光口径为56mm。

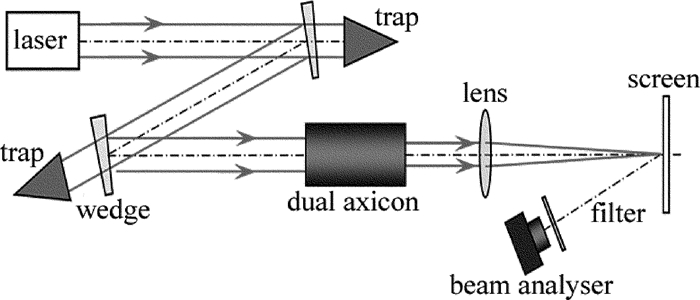

实验光路如图 3所示。所采用的激光器为非稳腔高能激光器。激光器输出的环形光束经光楔两次反射衰减至较低的能量,经双轴锥镜装置整形后输出,照射到反射屏上形成光斑。在双轴锥镜装置后方加入透镜可以将光束聚焦至反射屏上形成会聚光斑。透镜焦距为5m。采用Spiricon的SP620U光束分析仪对经过双轴锥镜装置整形的激光束进行分析。光束分析仪采集反射屏上的光斑,测量光斑参量。

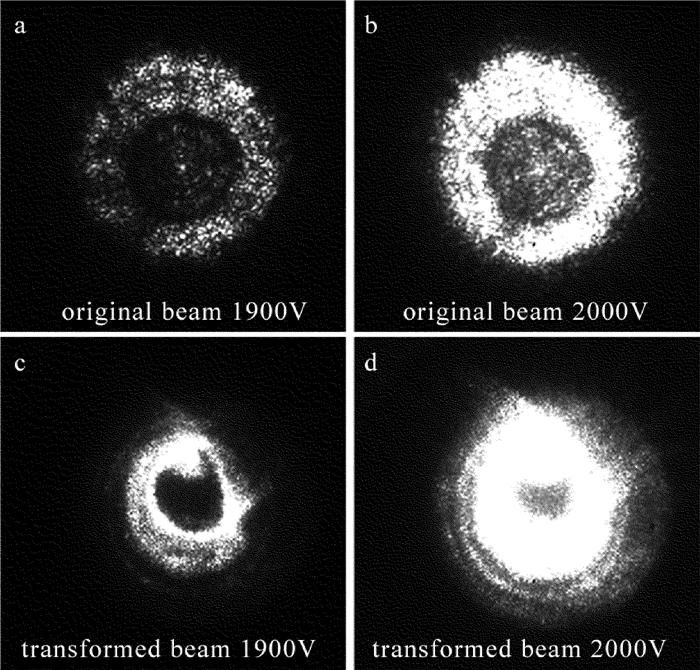

实验结果如图 4和图 5所示。图 4为没有加入透镜时,激光器在不同放电电压下,输出的光束经过双轴锥镜装置整形前后的光斑分布。图 4a和图 4b为没有经过整形的原始激光束光斑分布;图 4c和图 4d为经过双轴锥镜装置整形的激光束光斑分布。由图中可以看出,经过整形后,光斑中心空心区域减小,光斑直径减小,光斑能量分布更加集中,能量密度增大。实验中采用功率通量法作为评价光束质量的标准。由光束分析仪测得的原始光斑直径为45mm,变换后光斑直径为32mm。

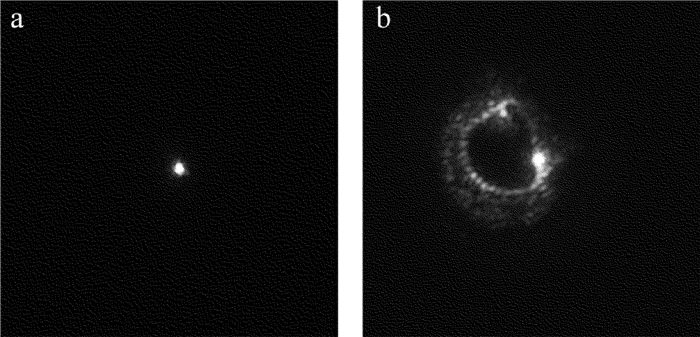

Figure 5. Intensity distribution of the converged beam before and after reshaping by dual axicon a—original beam b—transformed beam
图 5为经过5m焦距透镜会聚的激光束在反射屏上的光斑分布图像。原始光束会聚光斑直径为2.1mm,经过双轴锥镜变换后会聚的光斑直径为2.5mm。由此可以得到基于功率通量法的光束远场发散角θ:
$ \theta = \frac{d}{f} $
(6) 式中,d为会聚光斑直径,f为透镜焦距。得到原始光束远场发散角为0.42mrad,变换后光束远场发散角为0.5mrad。
由实验数据可以计算出基于功率通量法的光束质量因子:
$ {M^2} = \frac{{w\left( 0 \right)\theta }}{{4\lambda /{\rm{ \mathsf{ π} }}}} $
(7) 式中,w(0)为基于功率通量法得到的光束在束腰处的直径,原始束腰直径为45mm,变换后束腰直径为32mm。计算得到变换前后的光束质量因子M2分别为14和11.8。
基于双轴锥镜的环形激光束整形
Annular laser beam reshaping based on dual axicons
-
摘要: 为了改善非稳腔高能激光系统的光束质量,提高发射光学系统口径的利用率,采用新型的可用于光学非稳腔输出环形光束的光学整形方法,通过在激光腔外的光路上增加光学元件对输出的环形激光束进行了整形变换。在理论分析的基础上,设计并加工了基于双轴锥镜的光束整形装置,针对非稳腔高能激光器输出的环形光束进行了整形实验,取得了与理论分析一致的数据。结果表明,采用双轴锥镜装置整形后的光束比原始光束具有更好的光束质量,光束束腰直径由45mm减小为32mm,光束质量因子M2由14减小到11.8。该方法用于光学非稳腔输出环形光束整形变换具有可行性。Abstract: In order to improvelaser beam quality of unstable cavity high energy laser systems and the utilization of the aperture of a transmitting optical system, a new optical shaping method for the annular beam was proposed. Optical elements were added to the light path outside the laser cavity to shape the output of annular laser beam. On the basis of theoretical analysis, beam shaping devices based on dual axicons were designed and fabricated. The shaping experiments were carried out for the annular beam from an unstable cavity high energy laser. The data was obtained and was consistent with theoretical analysis.The results show that, the beam after shaping by using dual axicons has better beam quality than that of the original beam. Waist diameter decreases from 45mm to 32mm. M2 factor reduces from 14 to 11.8. The method is feasible for the shaping and transformation of the annular beam from an unstable resonator.
-
Key words:
- laser optics /
- annular beam /
- beam reshaping /
- axicon
-
