Fusion of infrared and visible light images of power equipment based on Schatten-p LatLRR
-
摘要:
为了解决潜在低秩表示(LatLRR)方法中使用的核函数可能导致的对秩函数逼近出现偏差问题，采用基于Schatten-p范数与潜在低秩分解的方法，进行了理论分析和实验验证。通过中值滤波方法对图像去噪，利用基于Schatten-p范数和LatLRR的图像分解方法，将图像分解为低秩部分与显著部分；采用算数平均策略融合红外与可见光的低秩部分，采用求和策略融合红外与可见光图像的显著部分；最终采用求和策略融合已融合好的低秩部分与显著部分，得到兼具清晰的纹理信息和显著的热故障信息的红外与可见光融合图像。结果表明, 最佳融合效果的p值为0.6, 在7种算法中有最好的融合性能。该方法能够有效地捕捉电力系统红外与可见光源图像中丰富的整体结构和局部结构信息。
-
关键词:
- 图像处理 /
- 潜在低秩表示 /
- Schatten-p范数 /
- 中值滤波
Abstract:In order to address the potential deviation in rank function approximation caused by the kernel function used in the latent low-rank representation(LatLRR) method, an approach based on Schatten-p norm and latent low-rank decomposition was proposed. Theoretical analysis and experimental validation were conducted using this method. The images were first denoised using a median filtering method. The images were decomposed into low-rank and salient parts using the Schatten-p norm-based latent low-rank decomposition method combined with LatLRR. Then, an arithmetic mean strategy was employed to fuse the low-rank parts of the infrared and visible light images, while a summation strategy was used to fuse their salient parts. Finally, a summation strategy was applied to fuse the already merged low-rank and salient parts, resulting in fused infrared and visible light images with clear texture information and prominent thermal fault information. Through qualitative and quantitative experimental analysis, a p-value of 0.6 was determined to achieve the optimal fusion effect, and the proposed method outperformed seven other algorithms in fusion performance comparison. Through this approach, rich structural information at both global and local levels in infrared and visible light source images of power systems can be effectively captured.
-
-
![]()

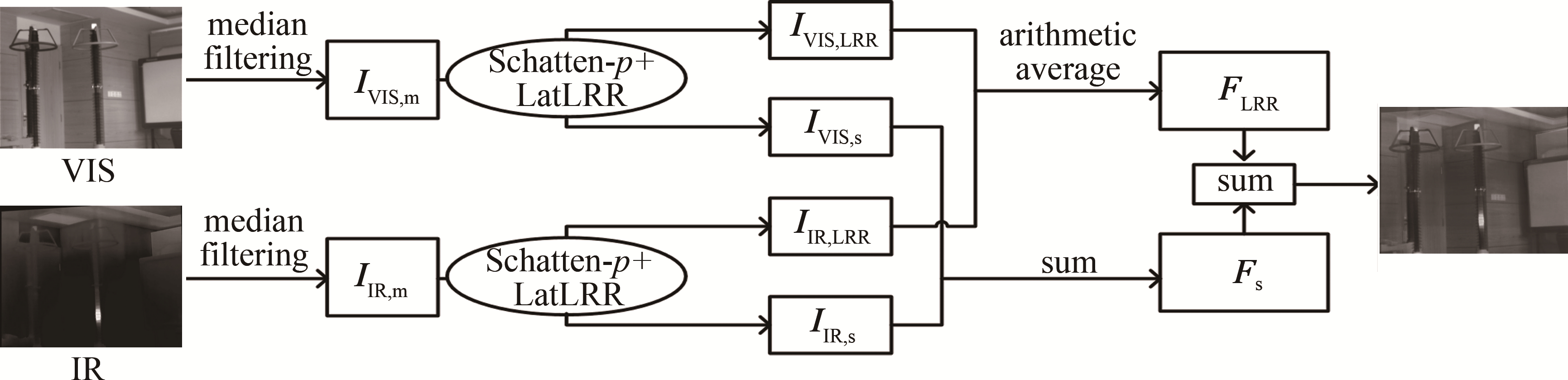

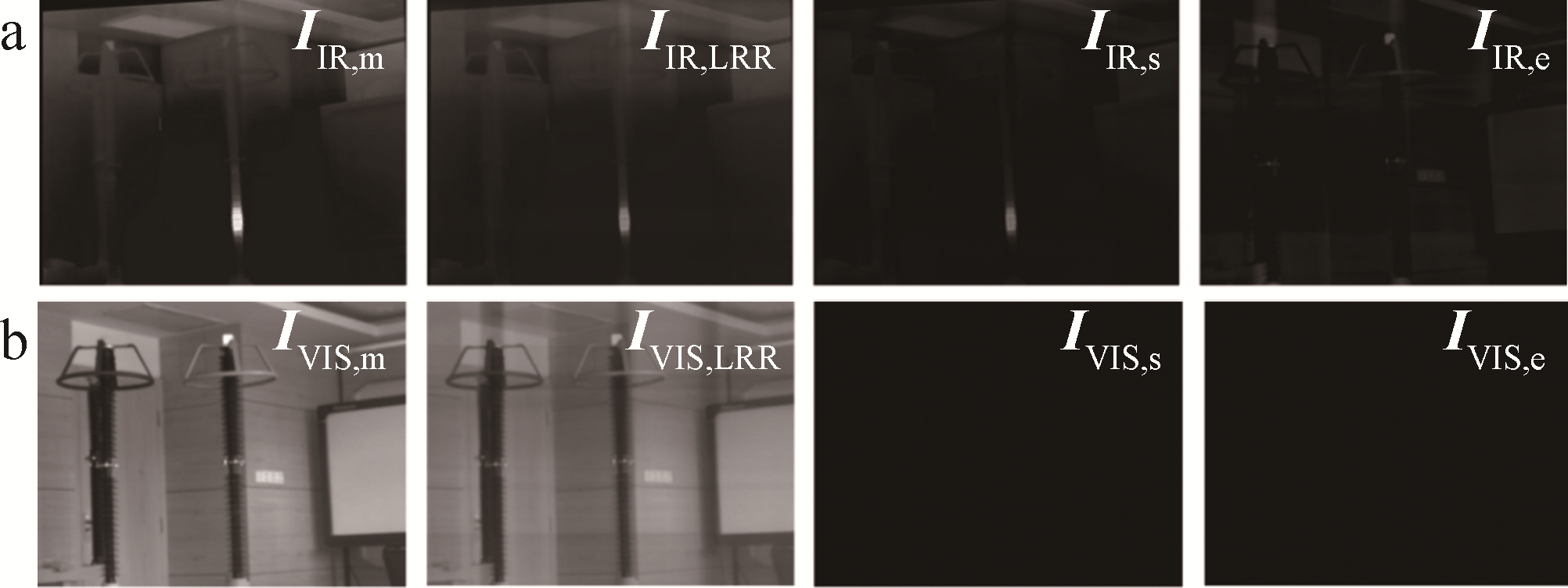

图 2 图像分解
a—红外图像分解 b—可见光图像分解
Figure 2. Image decomposition
a—infrared image decomposition b—visible light image decomposition
![]()

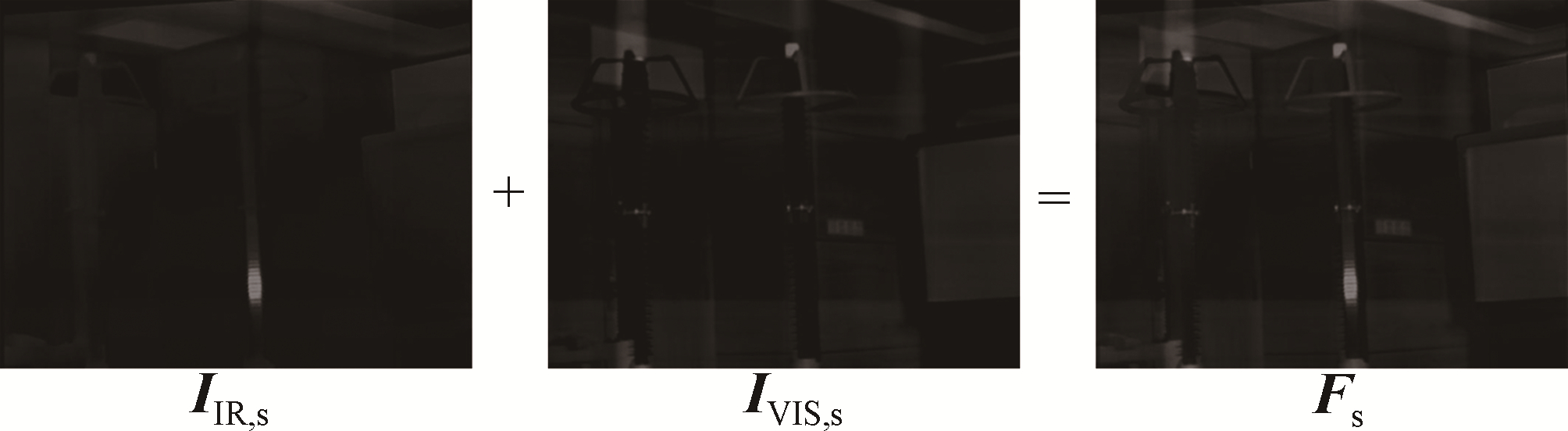

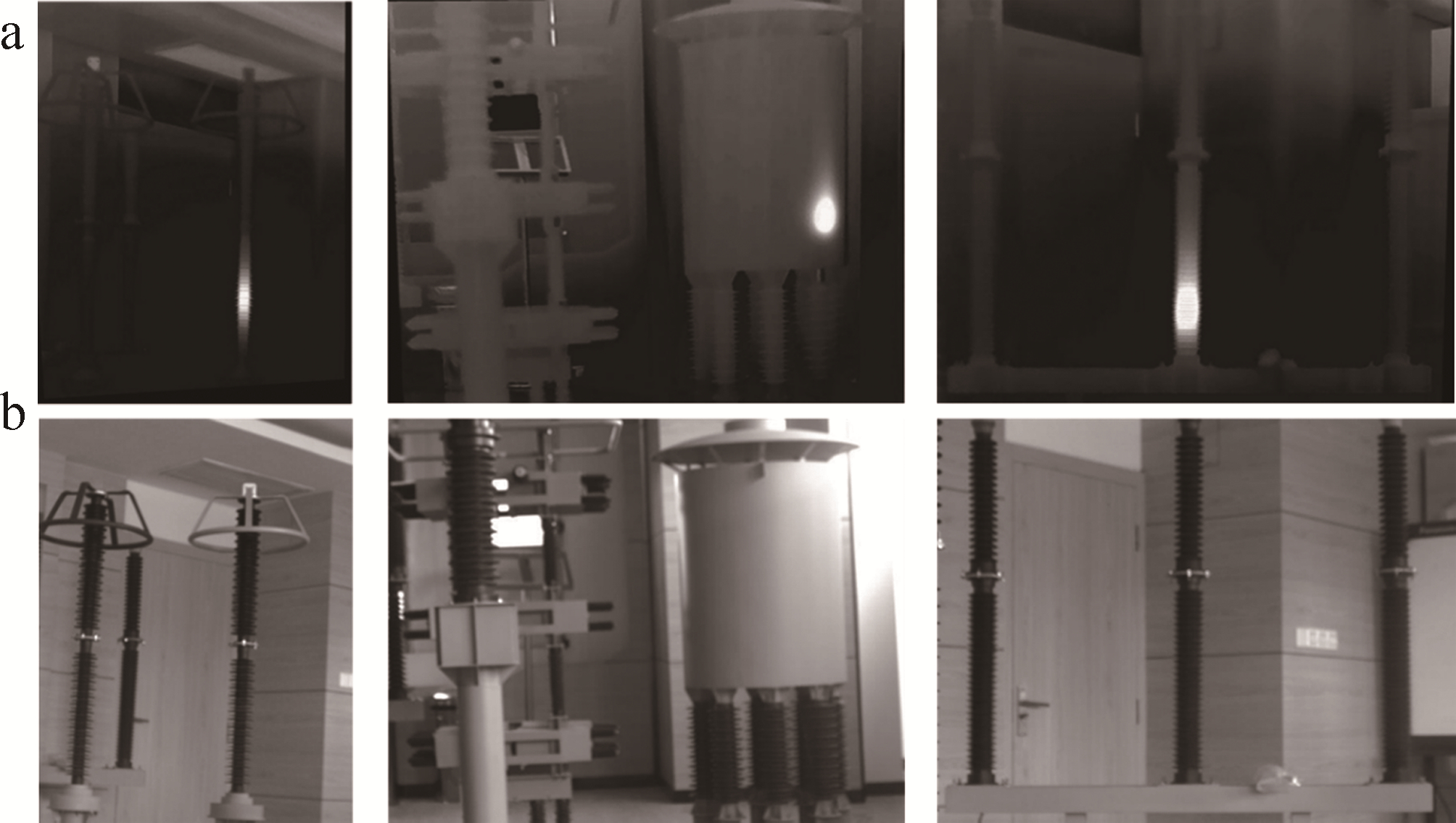

图 6 源图像对
a—红外图像 b—可见光图像
Figure 6. Source image pair
a—infrared image b—visible light image
![]()

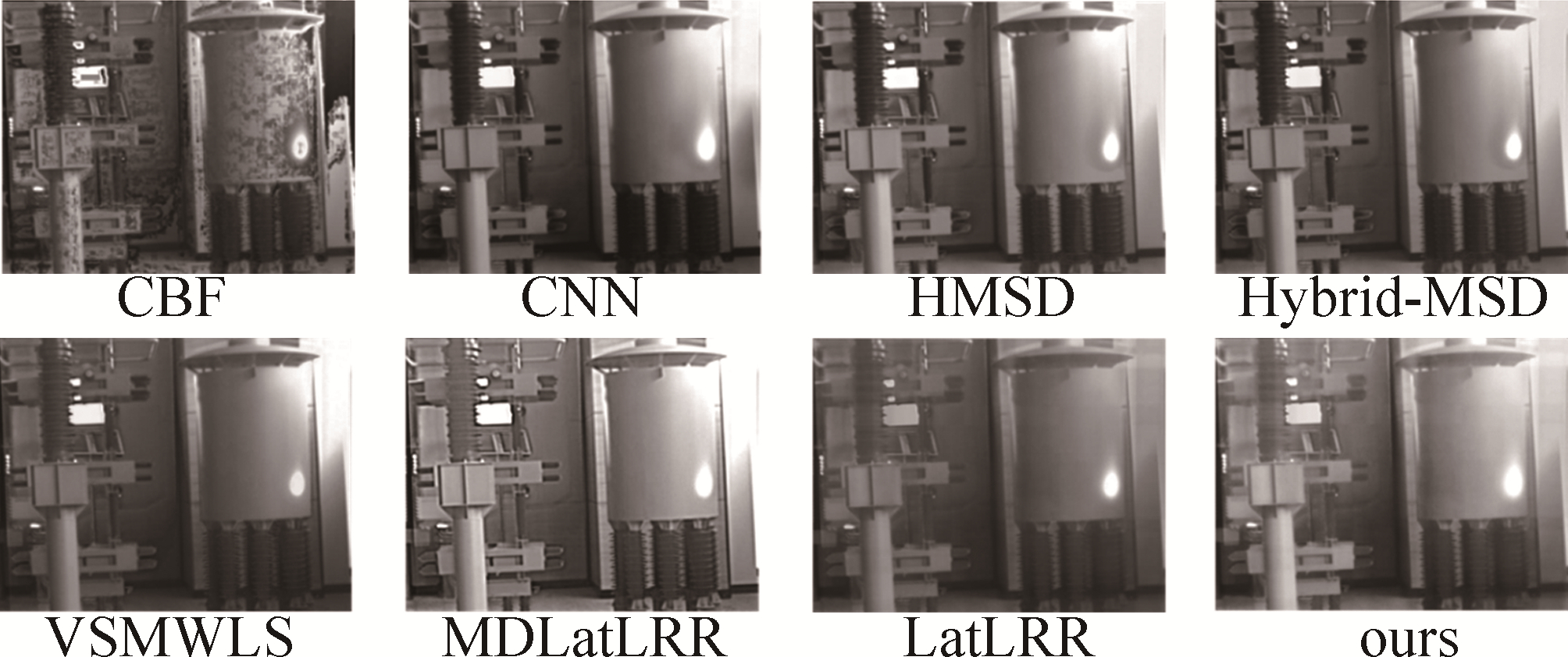

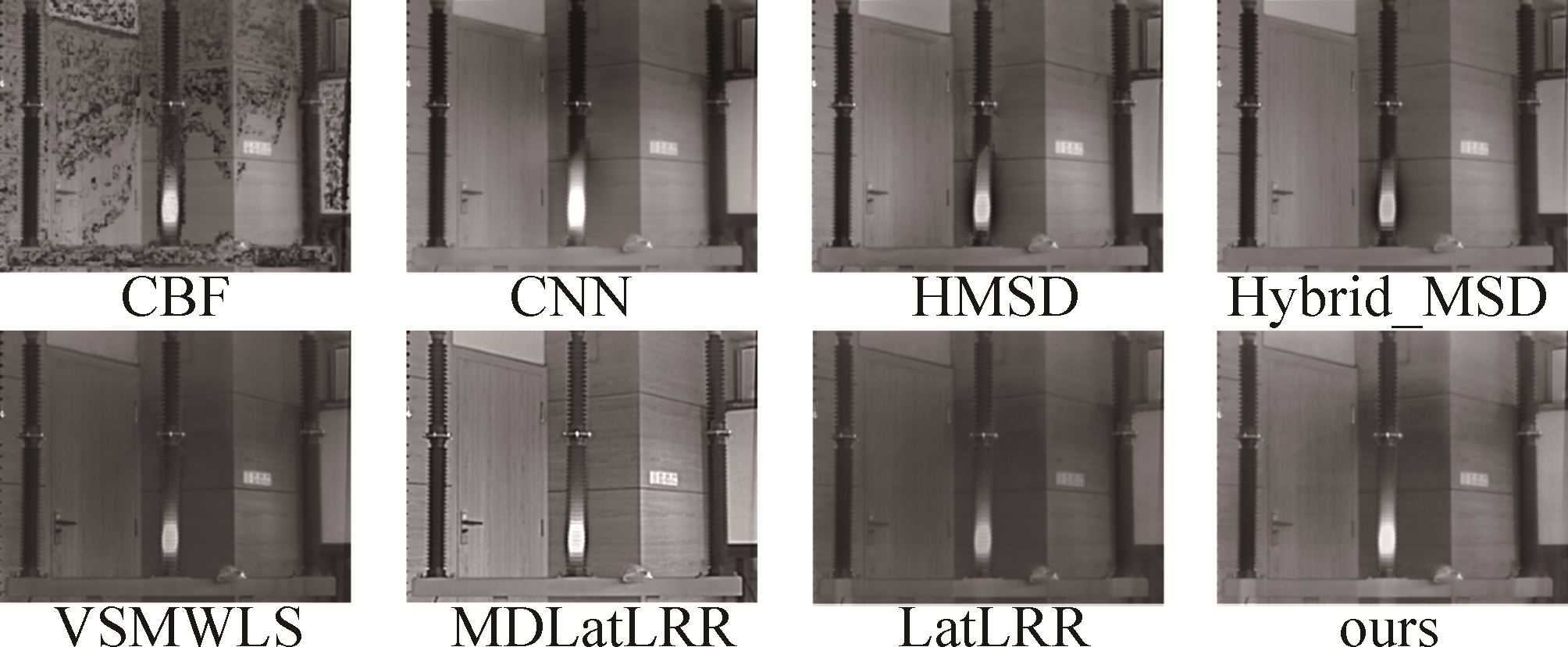

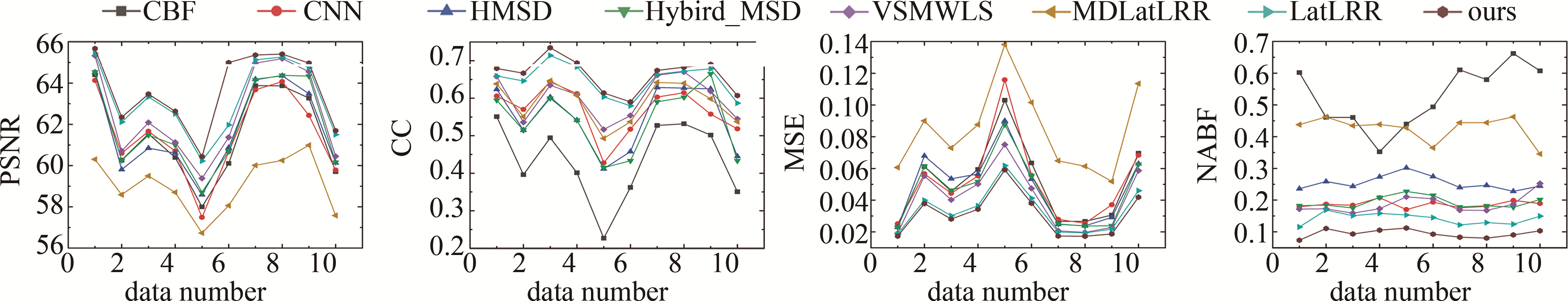

图 10 8种算法在PSNR、CC、MSE、Nabf上的评估结果
Figure 10. Evaluation results of 8 algorithms on PSNR, CC, MSE, NABF
表 1 p值效果比较
Table 1 Comparison of p-value effects
p-value PSNR CC MSE NABF 0.1 62.97063 0.63547 0.03485 0.09971 0.2 62.96614 0.63543 0.03482 0.09971 0.3 62.96836 0.63538 0.03479 0.09974 0.4 62.97593 0.63544 0.03476 0.09857 0.5 62.98138 0.63531 0.03474 0.09912 0.6 62.98348 0.63558 0.03461 0.09738 0.7 62.9802 0.63526 0.03468 0.09813 0.8 62.97511 0.63524 0.03467 0.09903 0.9 62.97606 0.63526 0.03473 0.09854 1.0 62.98052 0.63527 0.03470 0.10683
