Effect of Zn interlayer on laser welding of Mg/Al dissimilar metal
-

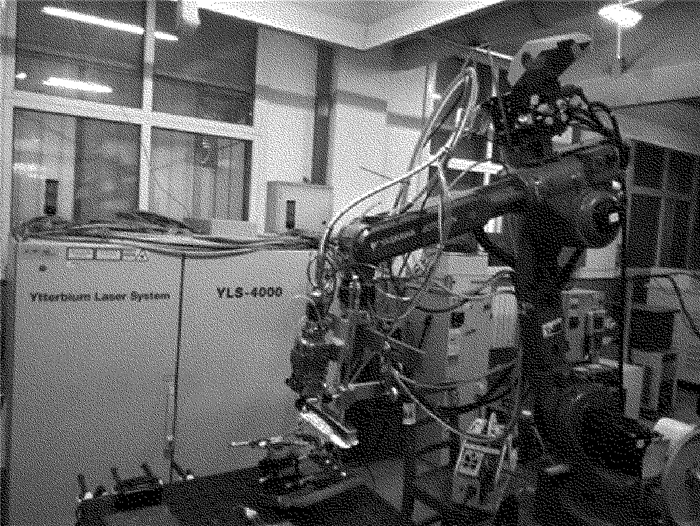

摘要: 为了研究激光焊接镁/铝异种金属的工艺方法，采用4kW光纤激光器对AZ31B镁合金和5083铝合金进行了添加Zn中间层的焊接试验，得出了Zn中间层对镁/铝异种金属激光焊接接头的影响机理。结果表明，焊接接头组织较为均匀，热影响区不明显；镁侧熔合区及焊缝中心部位以α-Mg和α-Mg+Mg17Al12共晶组织为主，底部为Al固溶体及Mg/Al，Mg/Zn间化合物组成的混合组织；随着Zn中间层厚度的增加，焊缝底部生成的Mg/Zn化合物数量增多，Mg/Al间化合物数量明显减少，且连续分布的状态得到改善，剪切断裂由解理向混合断裂方式过渡；当中间层厚度为0.1mm时，拉剪强度达到最大值25.47MPa。该研究对提升镁/铝异种金属焊接接头的强度是有帮助的。Abstract: In order to study the laser welding process of magnesium/aluminum dissimilar metals, the experiment was conducted on AZ31B magnesium alloy and 5083 aluminum alloy with Zn interlayer by using 4kW fiber laser. The influence mechanism of Zn interlayer on Mg/Al dissimilar metal laser welding joint was obtained. The results show that the microstructure of the weld is uniform, and the heat affected zone is not obvious. The magnesium side and the center are mainly composed of α-Mg and α-Mg+Mg17Al12 eutectic structure, and the bottom of weld is the mixture of Al, Mg/Al and Mg/Zn compounds. With the thickness of Zn increased, at the bottom of the weld, the formation of Mg/Zn compounds increase, the Mg/Al compounds reduce and the distribution of microstructure is improved. The shear fracture mode transforms from cleavage to mixed manner. When Zn interlayer is 0.1mm, the shear strength reaches the maximum 25.47MPa. The study is helpful in improving the strength of the Mg/Al dissimilar metal welded joints.
-
Keywords:
- laser technique /
- welding /
- Zn interlayer /
- intermetallic compound
-
-
![]()

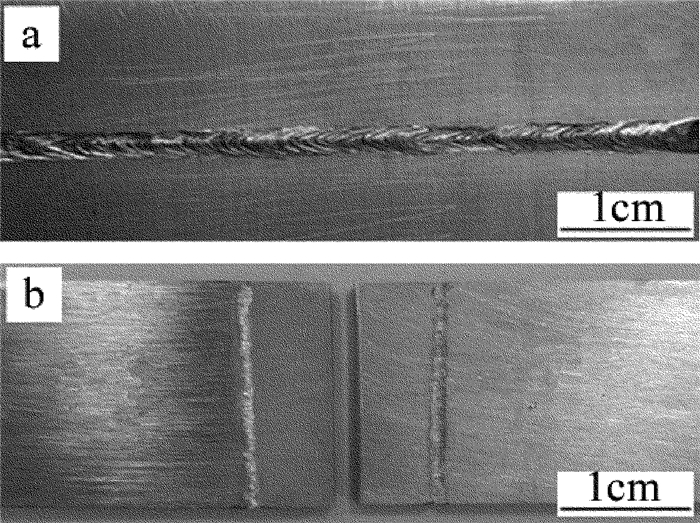

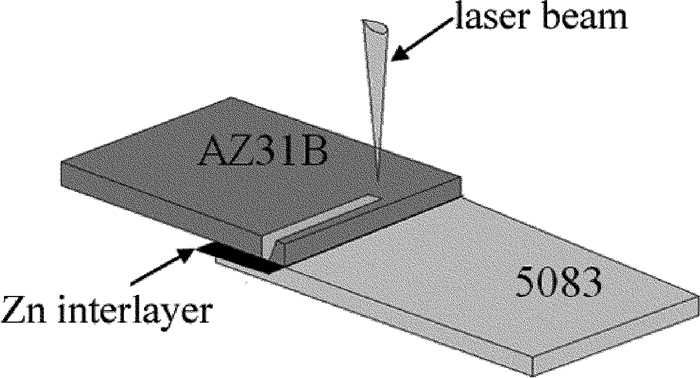

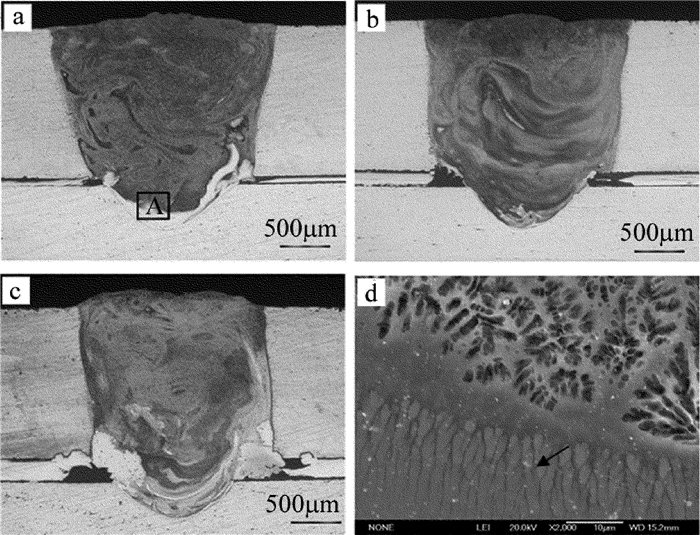

Figure 4. Morphology of cross section of the welding joint with different thickness of Zn interlayers
a—0.05mm b—0.1mm c—0.15mm d—SEM image of A
![]()

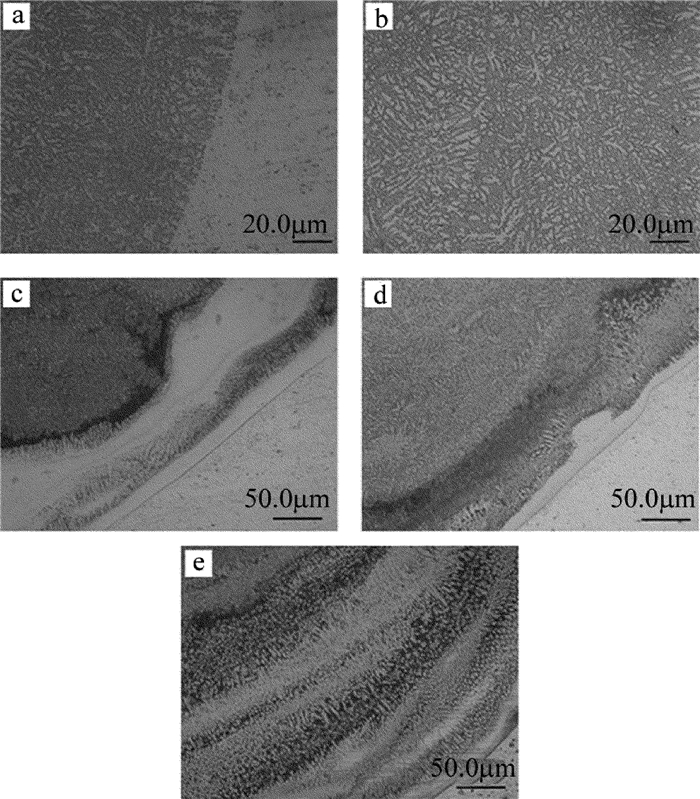

Figure 5. Microstructure of different welding zones
a—the Mg side with 0.05mm Zn interlayer b—the center with 0.05mm Zn interlayer c—the bottom with 0.05mm Zn interlayer d—the bottom with 0.1mm Zn interlayer e—the bottom with 0.15mm Zn interlayer
![]()

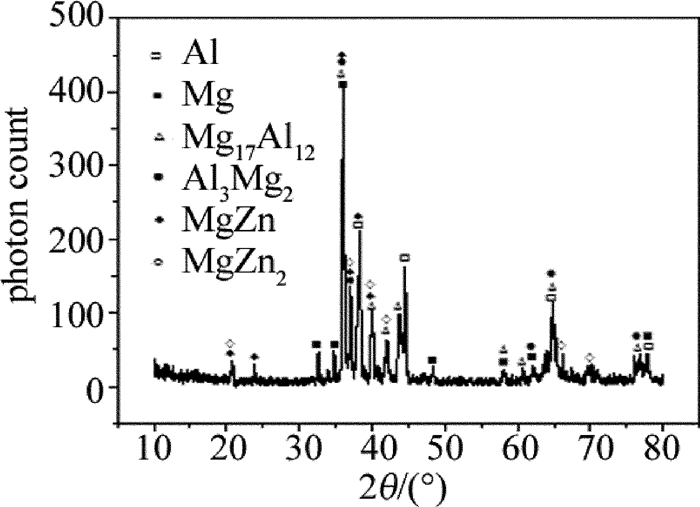

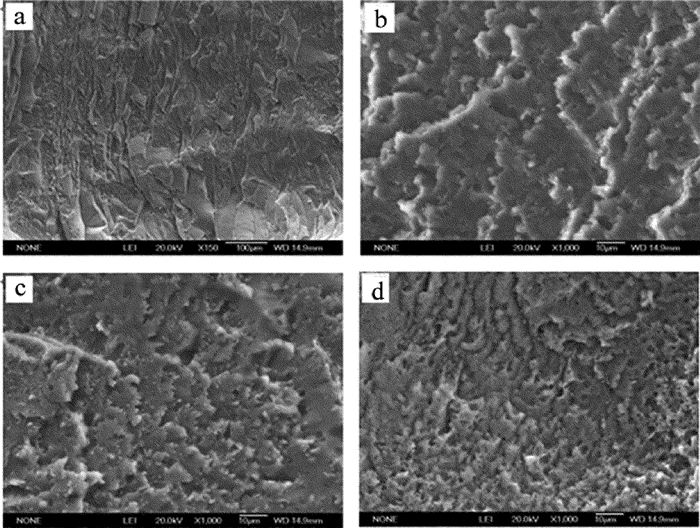

Figure 8. Fracture morphology of Zn interlayer with different thicknesses
a—0.05mm macroscopic b—0.05mm microstropic c—0.1mm micro-stropic d—0.15mm microstropic
Table 1 Chemical compositions (mass fraction) of aluminum 5083 and magnesium AZ31B
material Mg Al Zn Si Fe Cu Mn Ti Ca Cr 5083 0.045 balance 0.0025 0.004 0.004 0.001 0.006 0.015 — 0.002 AZ31B balance 0.0319 0.0081 0.0002 0.00005 0.0005 0.00334 — 0.0004 —
下载: 导出CSV

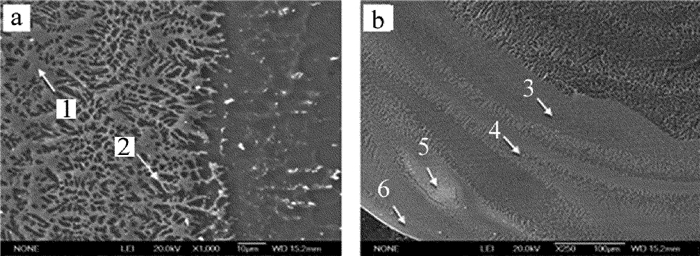

Table 2 EDS results at different locations (atom fraction)
position Mg Al Zn 1 0.7726 0.1910 0.0364 2 0.6379 0.2853 0.0768 3 0.5302 0.3389 0.1309 4 0.5266 0.2838 0.1896 5 0.1904 0.5899 0.2197 6 0.3846 0.5161 0.0993
下载: 导出CSV
-
[1] WANG H, LIU L M, LIU X J. Diffusion behaviour analysis of TIG welded joint between dissimilar materials Mg and Al[J].Transactions of China Welding Institution, 2005, 26(7):5-8(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hjxb200507002
[2] LIU X J. Study on fusion weldability to dissimilar alloys of magnesium alloy and aluminum alloy[D].Dalian: Dalian University of Technology, 2007: 1-3(in Chinese).
[3] MENG Q S. Elementary metal weldability[M].Beijing:Chemical Industry Press, 2010:1-5(in Chinese).
[4] ZENG R Ch, KE W, XU Y B, et al. Recent development and application of magnesium alloys[J]. Acta Metallurgica Sinica, 2001, 37(7):672-685(in Chinese). http://en.cnki.com.cn/Article_en/CJFDTOTAL-JSXB200107000.htm
[5] LIU J A, XIE Sh Sh. Application and development of aluminium alloys[M]. Beijing:Metallurgical Industry Press, 2004:14-15(in Chinese).
[6] LI Y J, WANG J, LIU P. Welding and application of dissimilar materials[M]. Beijing:Science Press, 2004:170-171(in Chinese).
[7] YU G, ZHAO Sh S, ZHANG Y J, et al. Research on key issues of laser welding of dissimilar metal[J]. Chinese Journal of Lasers, 2009, 32(6):261-268(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgjg200902001
[8] MA J, WANG J. Microstructure and property of laser butt welded joint of Mg-Al dissimilar metal[J]. Hot Working Technology, 2014, 17(9):211-213(in Chinese). http://en.cnki.com.cn/Article_en/CJFDTotal-SJGY201417064.htm
[9] GU J J, LIU X W. Study on friction stir welding of AZ31B/LY12[J]. Hot Working Technology, 2008, 37(1):52-53(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=rjggy200801019
[10] WANG X N, LIANG Zh Y, CHEN K, et al. A Review on dissimilar friction-stir welding between aluminum alloys and magnesium alloys[J]. Shanghai Nonferrous Metals, 2011, 32(1):32-40(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=shysjs201101010
[11] GUO W. Research on laser welding characterist of Mg-Fe with Al as interlayer and interface reaction mechanism[D]. Harbin: Harbin Institute of Technology, 2013: 16-35(in Chinese).
[12] ZHANG H T, DAI X Y, FENG J C. Joining of aluminum and magnesium via pre-roll-assisted a-TIG welding with Zn interlayer[J]. Materials Letters, 2014, 122(5):49-51. https://www.sciencedirect.com/science/article/abs/pii/S0167577X14001967
[13] CHEN G Y, LI Ch Z, ZHOU C, et al. Partical penetration welding of 5A06 aluminum alloy with high power fiber laser [J]. Laser Technology, 2016, 40(1):15-19(in Chinese). http://www.en.cnki.com.cn/Article_en/CJFDTOTAL-JGJS201601005.htm
[14] ZHANG J X, LIU F Zh, GAO B, et al. Affecting factors of pulse laser wellding property of Al-Mg series aluminum alloy [J]. Laser Technology, 2015, 39(6):863-868(in Chinese).
[15] DUAN X Y, LIU J. Effect of Zn interlayer on diffusion bonding of Mg-Al dissimilar metal[J]. Hot Working Technology, 2014, 43(17):223-225(in Chinese). http://en.cnki.com.cn/Article_en/CJFDTotal-SJGY201417068.htm
[16] FANG L. Study on the fusion welding process of magnesium alloy and aluminum alloy with Zine as interlayer[D]. Harbin: Harbin Institute of Technology, 2016: 40-50(in Chinese).
[17] LI H, QIAN M, LI D. The effect of intermetallic compounds on laser weldability of dissimilar metal joint between magnesium alloy AZ31B and aluminum alloy 6061［J]. Laser Journal, 2007, 28(5): 61-63(in Chinese). http://en.cnki.com.cn/Article_en/CJFDTotal-JGZZ200705030.htm
