Study on laser removal technology of foreign bodies on overhead transmission lines
-

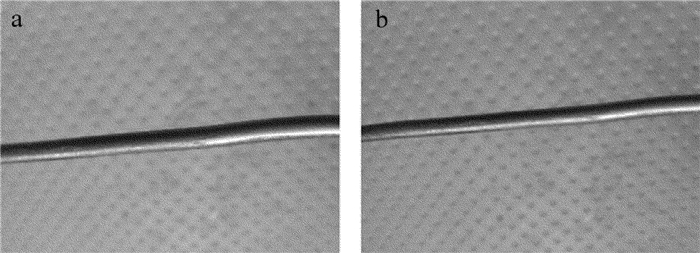

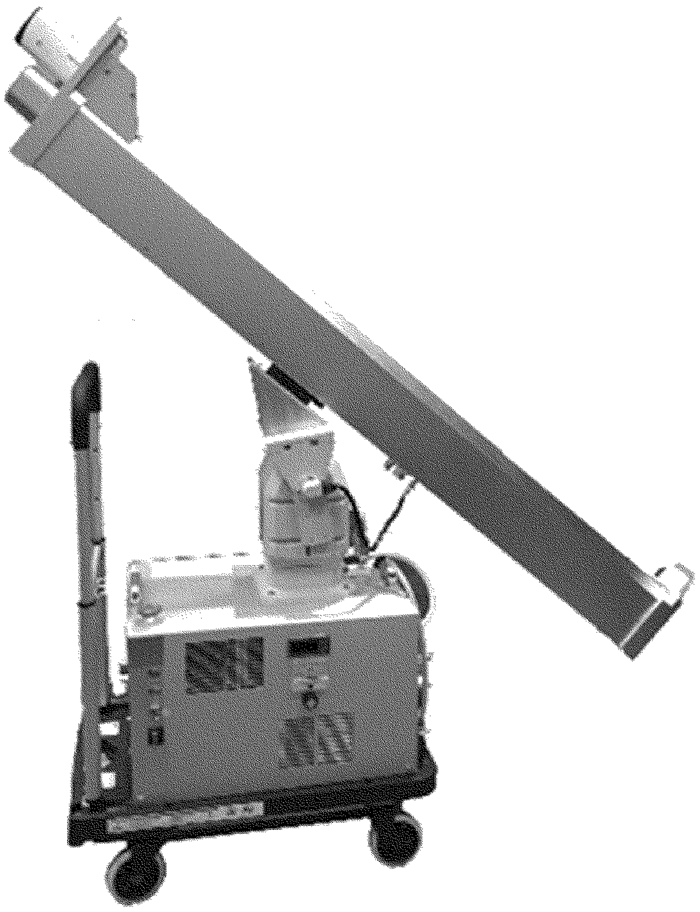

摘要: 为了解决传统工具和方法难以经济、高效、安全地清除架空输电线路异物的问题，提出了陆基定向能红外激光远程切割清除架空线路异物的方法，并进行了理论分析、有限元仿真和实验验证。基于上述研究，研制了架空线路异物激光清除设备，并进行了模拟实验和现场工程应用。结果表明，清除异物所需最小功率密度为20W/cm2，该功率密度的激光对导线不会造成损伤。该设备可远程、快速、带电、安全地清除架空线路异物。Abstract: In order to solve the problem that the traditional tools and methods can not meet the requirement of clearing foreign object debris economically, efficiently and safely, the method of clearing foreign object debris on overhead power lines with land-based directed energy laser remotely was proposed. Theoretical analysis, finite element simulation and experimental verification were carried out. Based on the above research, the apparatus for removing foreign bodies from overhead lines by laser was developed, tested and applied in engineering practice. The result shows that the appropriate minimum power density is 20W/cm2, and the laser irradiation of 20W/cm2 is unable to damage the wire. The laser removal apparatus can remove foreign bodies on overhead lines under live working conditions efficiently and safely at long distance.
-
-
![]()

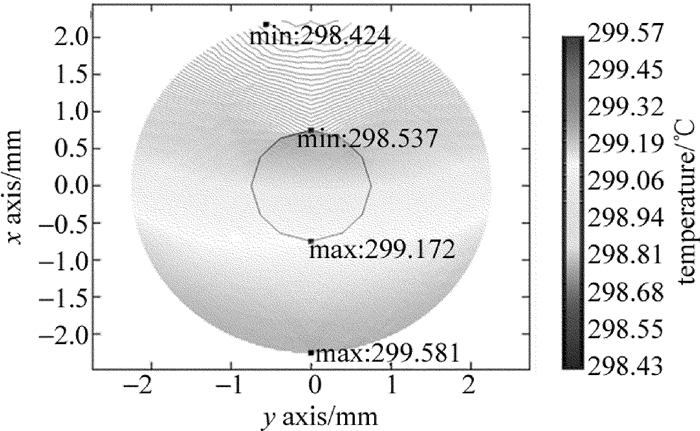

Figure 3. Temperature distribution of cross section at irradiation point of ACSR LGJ-10/2
Table 1 Thermal properties of wire and some common foreign body material
material thermal conductivity/ (W·m-1· K-1) specific heat capacity/ (J·kg-1· K-1) melting point/ ignition point/ ℃ iron 80 450 1535 pure aluminum 237 910 660 aluminium alloy 100~237 ≈904 500~660 polyethylene 0.32~0.4 2301 < 200 polyvinyl chloride 0.12~0.17 1283~1464 < 200 polyester fiber 0.25 1340 250~270 nylon 0.15~0.50 1500~1930 < 390 rubber < 0.25 1700 350
下载: 导出CSV
-
[1] WANG Ch Y. Treatment method of foreign objects on grounding conductor for transmission line[J].Qinghai Electric Power, 2014, 33(1):20-22(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qhdl201401007
[2] LIU M L, YANG H F. Easy to remove floating debris leads the development and application tools[J]. Automation Panorama, 2011(s2):185-187(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK201105313891
[3] XU Q. A Multi-function device and application for extra matter dis- posal for transmission lines[J]. Jiangsu Electrical Engineering, 2015, 34(5):15-16(in Chinese).
[4] LU D, XIA Zh Q, TANG X M, et al. An improved method and the tool development for live-working demolish of unidentified objects on transmission lines[J]. Zhejiang Electric Power, 2015(11):24-27(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zjdl201511007
[5] ZHANG Zh J, SUN W, FU Zh C. The use of remote bionic operation tool removing foreign bodies in distribution line[J]. Power & Energy, 2012, 33(4):340-343(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlyny201204010
[6] ZHAO H B, MA X Y. Introduction to remotely controlled burning-off machine for cleaning the foreign matter wrapped on transmission Lines[J]. Sci-Tech Information Development & Economy, 2011, 21(33):194-197(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=kjqbkfyjj201133078
[7] ZHU D Zh, LIU J W, LIANG H J, et al. Development of apparatus for removing foreign bodies based on remote control fire vehicle[J].China Science & Technology Panorama Magazine, 2016(10):49-50(in Chinese).
[8] KIM S D, MORCOS M M. Mechanical deterioration of ACSR conductors due to forest fires[J]. IEEE Transastions on Power Delivery, 2003, 18(1):271-276. DOI: 10.1109/TPWRD.2002.804011
[9] WANG Zh H, YOU F, ZHANG Y, et al. Analyses on damage behaviors and mechanism of operation properties of typical high-voltage transmission line under intense heat and blaze[J]. Fire Science and Technology, 2015, 34(6):714-718(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=xfkxyjs201506005
[10] LAN X J. Laser technology[M].Beijing:Science Press, 1995:239-255(in Chinese).
[11] READY J F. Industrial applications of lasers[M]. London, UK:Academic Press, 1997:320-330.
[12] READY J F. LIA handbook of laser materials processing[M]. Orlando, USA:Laser Institute of America, 2001:182.
[13] LIANG W, CHEN J, LIU Y, et al. A new device for removing foreign matter from overhead lines and its experimental study[J]. China Electric Power(Technology Edition), 2015(9):57-59(in Chinese).
[14] LI H Z, CHENG G, LIU Y, et al.The study of laser ablative characteristics of typical wire and foreign body on overhead line[J].High Voltage Engineering, 2015, 41(s1):107-111(in Chinese).
[15] HE Zh J, LI Zh B, LIANG P W. ANSYS calculation method of temperature and current-carrying capacity for transmission lines[J]. Zhejiang Electric Power, 2010, 29(8):1-5(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zjdl201008001
[16] HE Y J, ZHU R H, SHEN Zh H, et al. Numerical simulation of laser-induced transient temperature field in cylindrical shell[J]. Laser Technology, 2005, 29(4):386-388(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgjs200504014
[17] LIU Y F. Study on the current-temperature thermal circuit model of overhead line based on parameter identify[D]. Nanjing: Nanjing University of Science and Technology, 2015: 8-22(in Chinese).
[18] ZHANG G Sh. Modern laser manufacturing technology[M].Beijing:Chemical Industry Press, 2006:23-29(in Chinese).
[19] REN Zh J, XUE G X. Practical handbook of metallic materials[M]. Nanjing:Jiangsu Science and Technology Press, 2007:1039(in Chinese).
[20] JIAO J K, WANG X B, LU H. Analysis of temperature field and thermal stress field in quartz glass heated by laser beams[J]. Laser Technology, 2007, 31(4):427-430(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=jgjs200704028
[21] QI L J. Laser deicing theoretical and experimental research for transmission lines[D]. Wuhan: Huazhong University of Science and Technology, 2012: 79-94(in Chinese).
-
